TFLB Kit 10

Retrozone™ Belimo TFLB24 or

 TFLB120 Retrofit Motor Universal Bell Crank Kit


  (Free Shipping in Continental the US)

Installation

Instructions

Retrozone TFLB Kit 10, damper motor replacement, chain drive systems, HVAC
Retrozone TFLB Kit 10, damper motor replacement, chain drive systems, HVAC
Retrozone TFLB Kit 10, damper motor replacement, chain drive systems, HVAC

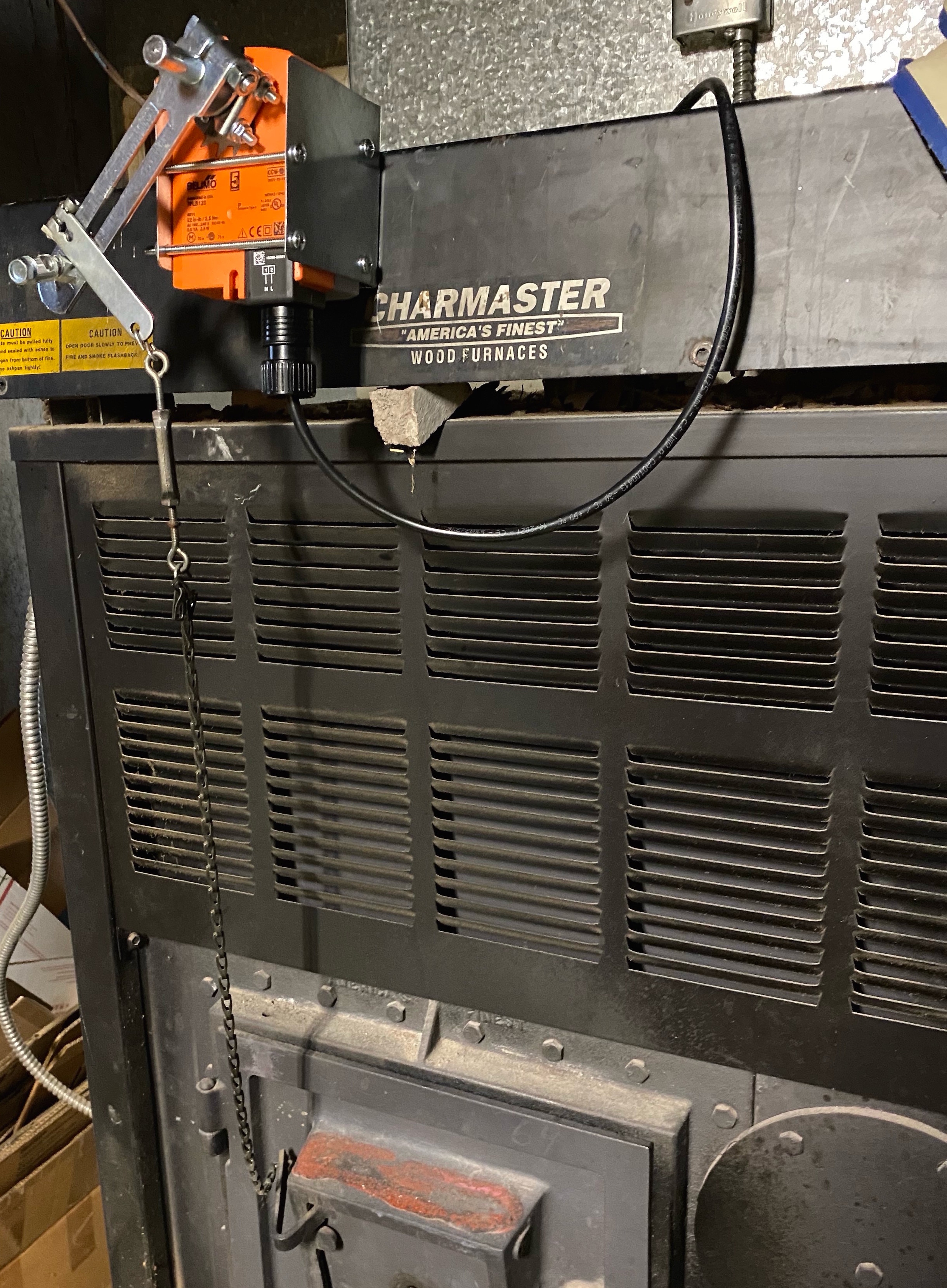

The TFLB Kit 10 Universal Bell Crank kit is designed to replace many motor applications where a push-pull movement is used to move a damper blade; including many chain drive systems.

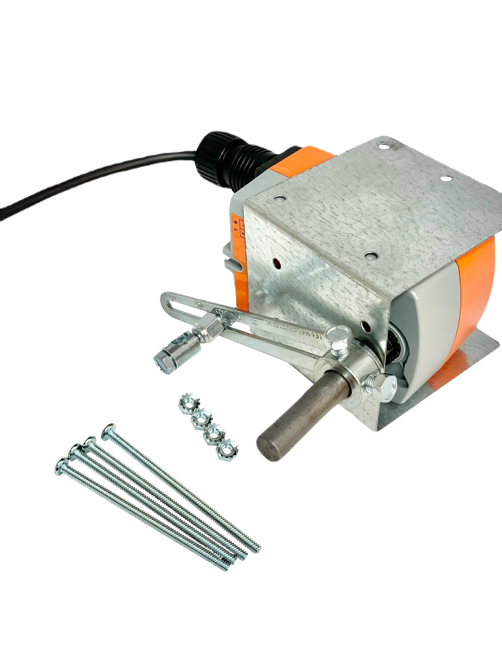

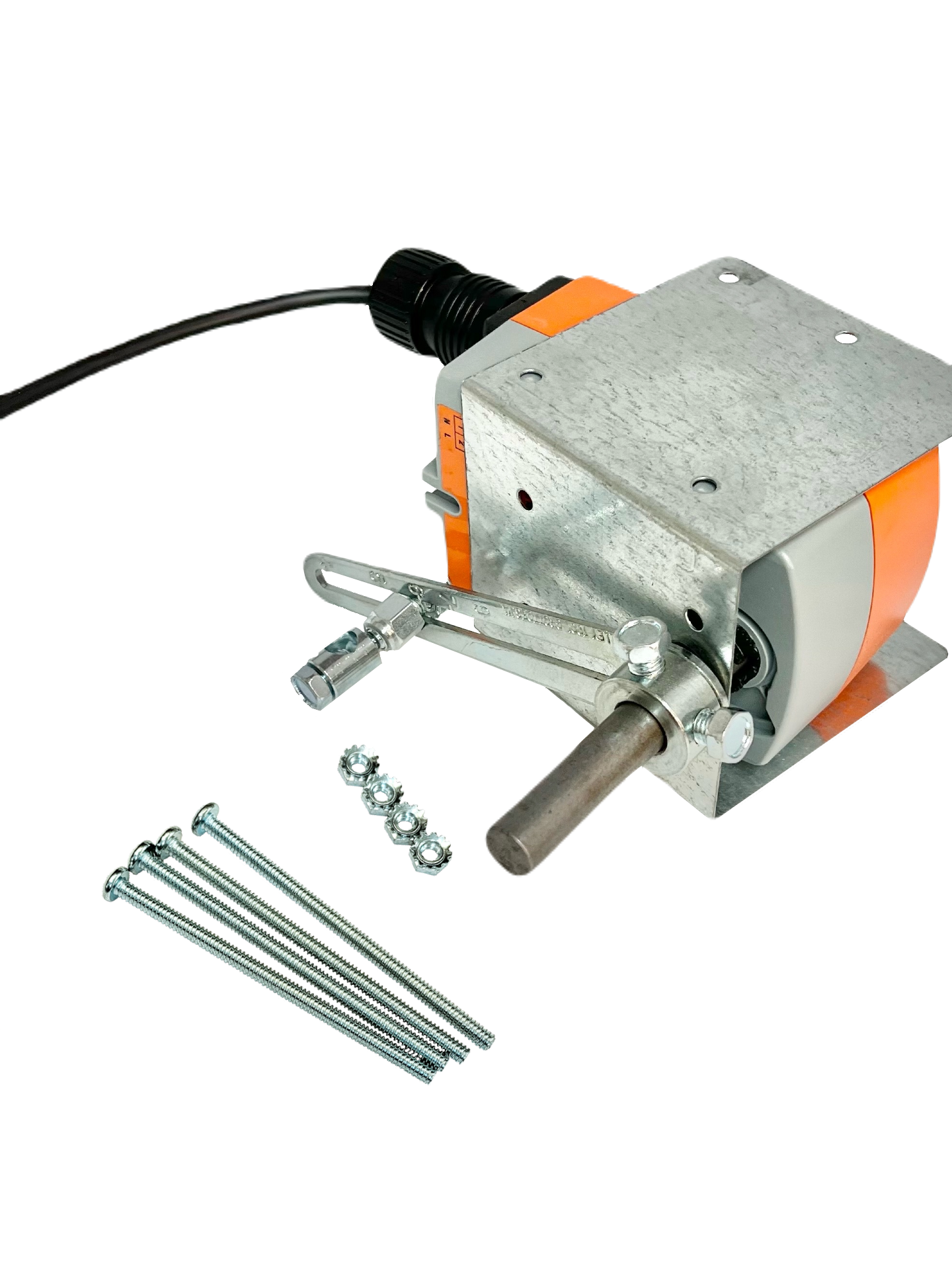

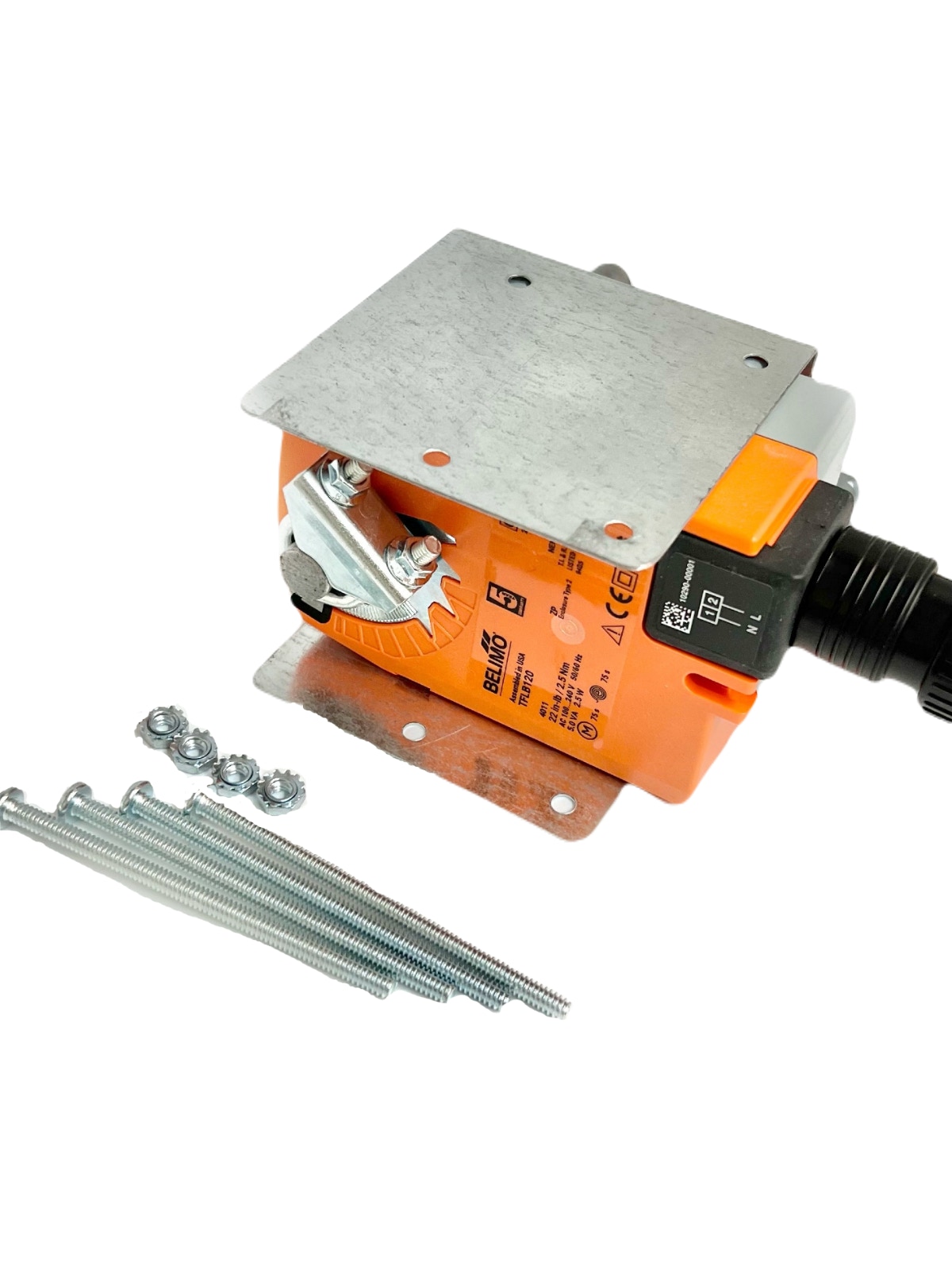

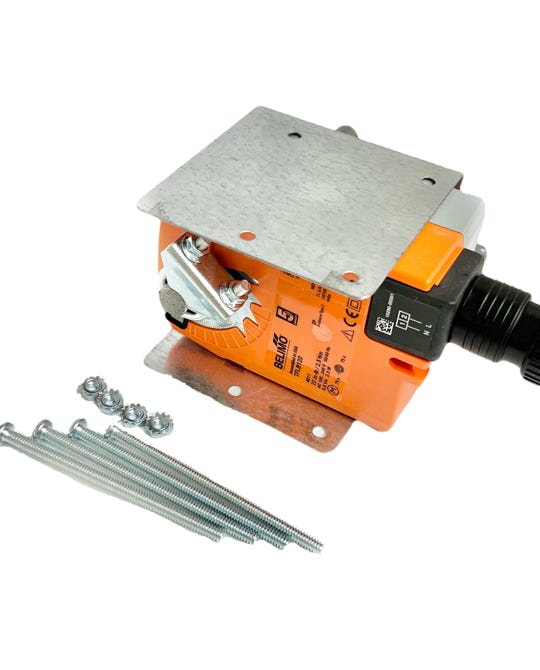

Base Kit Includes:

  • TFLB kit 10 instruction papers
  • Belimo TF Motor and factory motor instructions
  • Custom Cradle bracket
  • 4 Cross screws
  • 1/2 x 6 inch custom cross shaft
  • Bell Crank and ball joint





Kit Motor Options:

A. Standard kit as shown with 24volt motor

B. Standard kit with 120volt motor

C. Standard kit with SPDT end switch

D. custom kits price TBD

    Please email us for custom inquires.
