Specifications:

• Panel Power System Power Protection

• Zone Damper Control

• Indicators Configuration Terminals

• 6 VA maximum

• 100 VA maximum, 50 VA maximum per zone

• Electronic self resetting, current limiting on each zone

• Compatible with virtually all 24V powered and spring dampers

• LED’s for all thermostats, equipment

• and dampers, LCD display for configuration

• Single Stage Conventional equipment (1H / 1C)

• Panel Power: 24V, 24C Equipment: Rh, Rc, Y, G, G2, W, C Thermostats (3 each): R,Y, W, G, C Dampers (3 each): PO, C, PC Supply Air Inputs: SA1, SA2



Features:
• Controls up to 1 heating and 1 cooling stage
• Compatible with electric, gas and oil systems
• Can be used with virtually all conventional low-voltage thermostats and dampers from other manufacturers

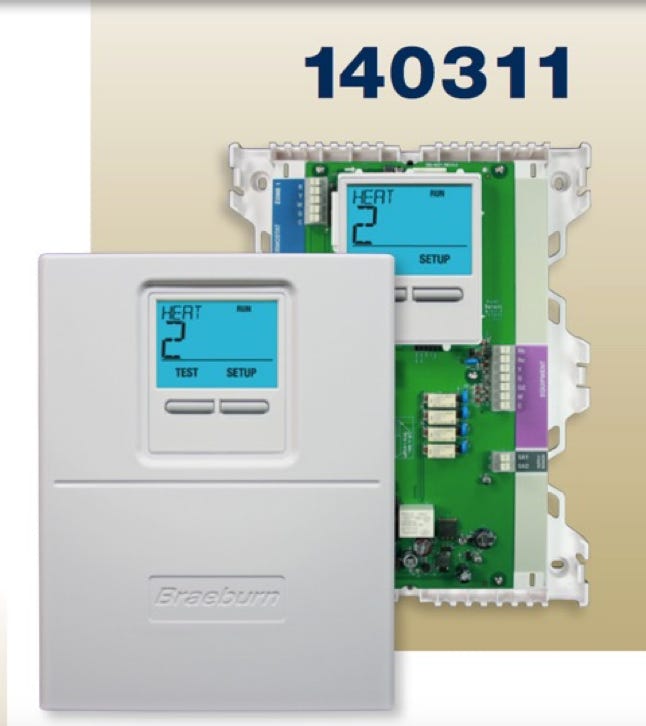

• Large 5.5 sq. in. display shows system status
• LED’s show all calls at a glance
• Push-in terminals for easy wiring– no screwdriver needed
• Push button set-up without dip switches

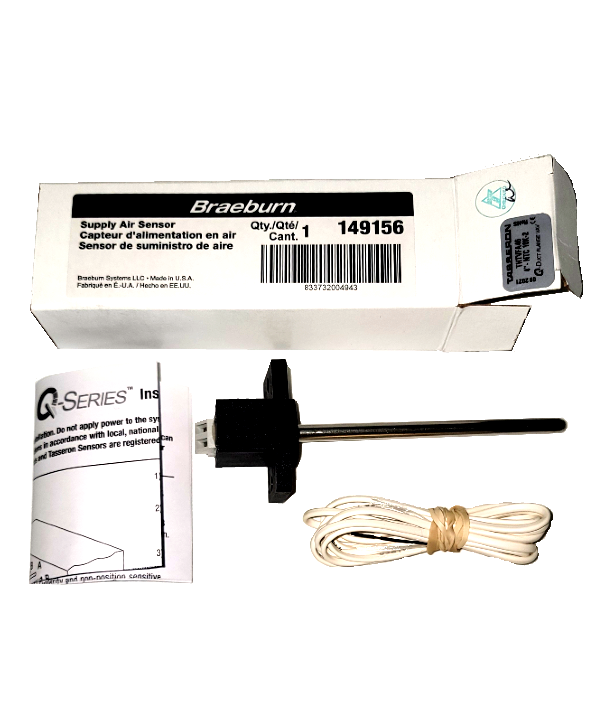

• High/Low Limit protection with optional supply air sensor
