EWC ZONE CONTROL PANELS

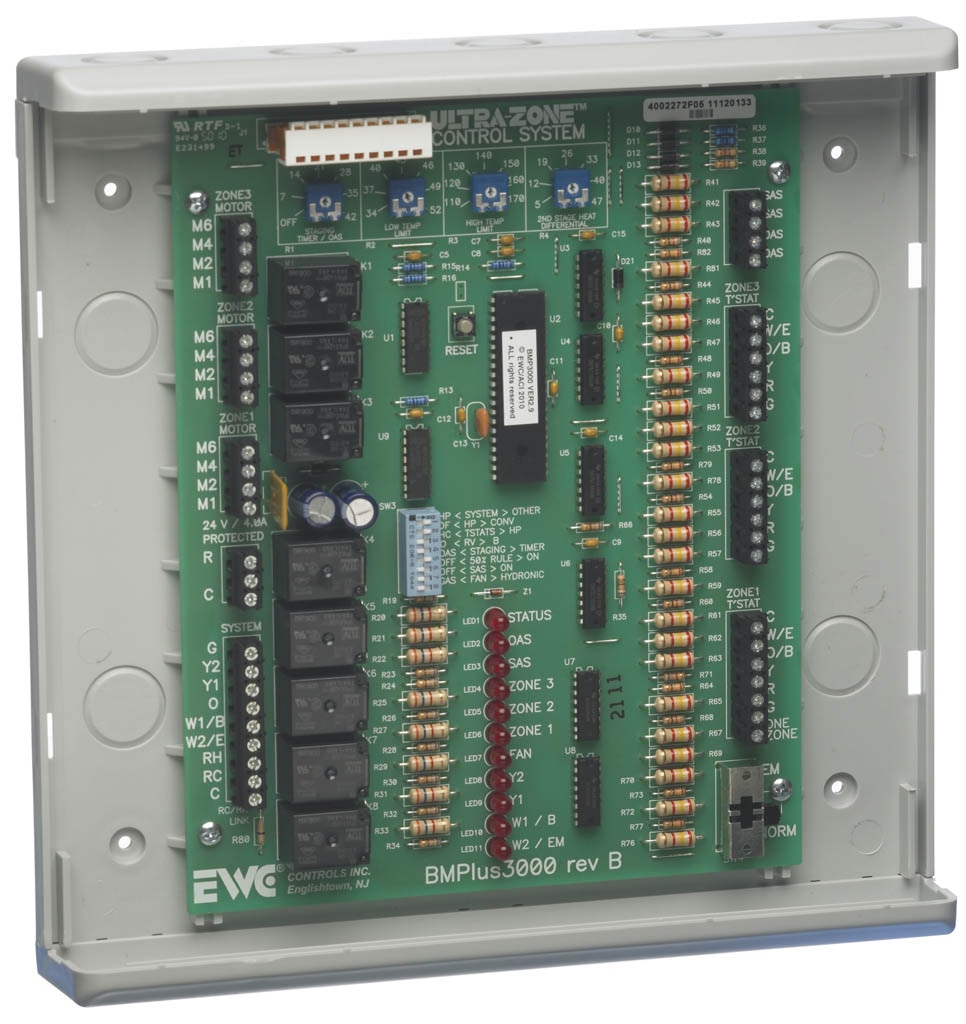

EWC BMP Control Panel
Up to 7 Zones with expansion panels Available in 3, 5 and 7 zones by using the

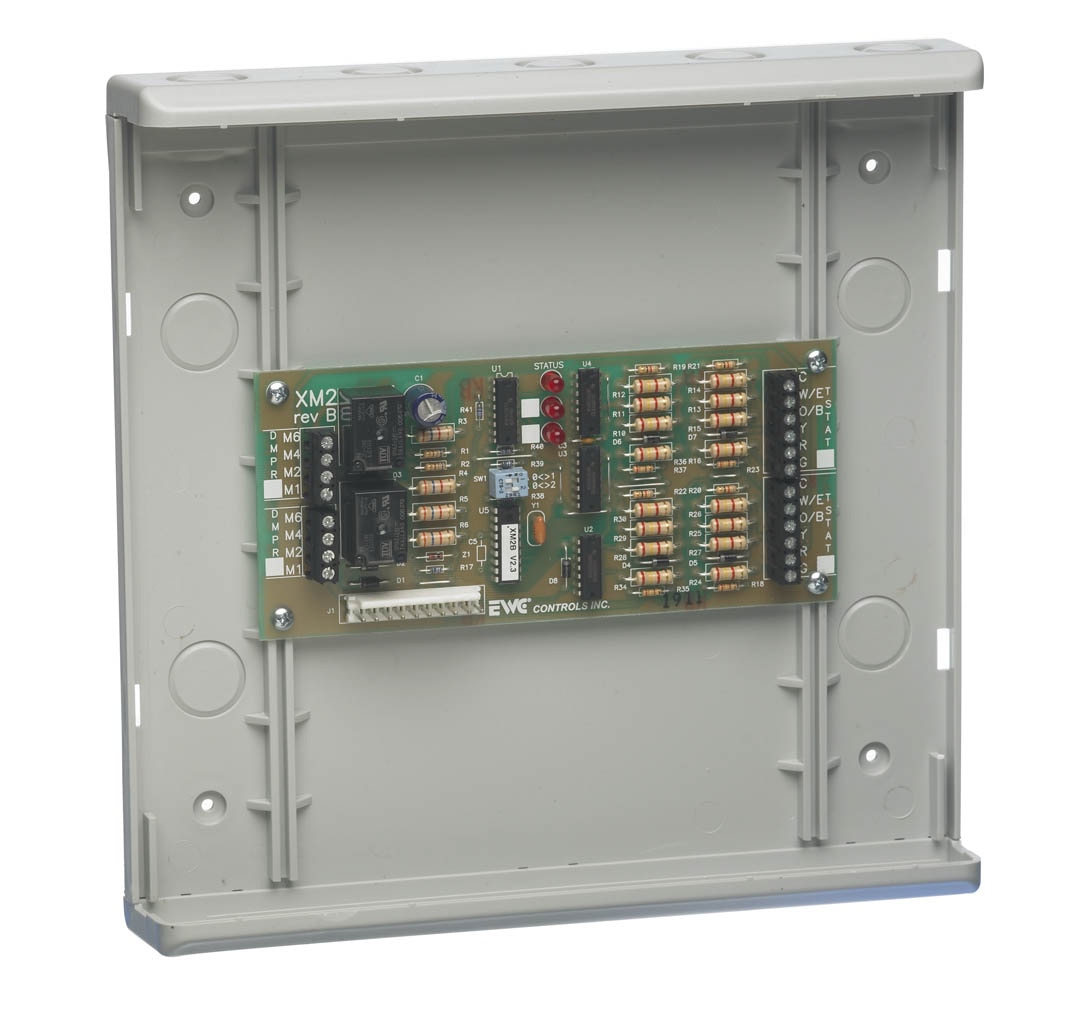

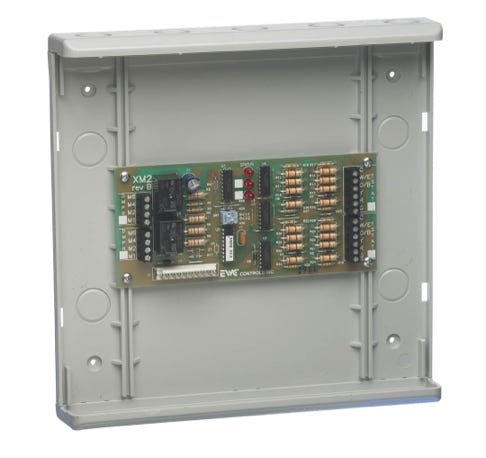

XM2 Expansion modules (up to 2 modules can be used). Comes with Supply Air Sensor.
Can control:
- 2 stage conventional or dual fuel kits or Heat Pumps.
- Single or two-stage gas, oil and hydronic heating systems, with single
or two stage air conditioning. Constant or variable speed fan systems.
- System can operate Heat Pump or 2nd stage from thermostat, timer or
adjustable outdoor air sensor. Will allow Heat Pump operation (back up heat) from thermostat, outdoor sensor, timer or switch on control panel.
- Compatible with any "off the shelf" Heat Pump or regular heat/cool thermostat.
- Automatic heat/cool changeover.
- Status LEDs, system LEDs, Damper LEDs.
- Operating power is 24VAC.
