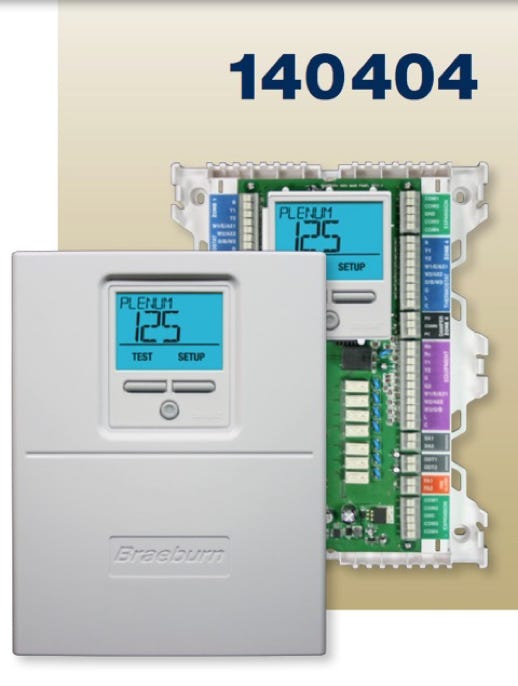

Braeburn Premier Series 140404

4-Zone Expandable Control Panel (4H/2C)

Braeburn's New Premier Series 4-Zone Control Panel for Conventional, Heat Pump, electric or Dual Fuel Applications, expandable up to 32 zones.

 Air Supply Sensor Included

Specifications:

• Panel Power - 6 VA maximum

• System Power - 100 VA maximum, 50 VA maximum per zone

• Protection - Electronic self resetting, current limiting on each zone

• Zone Damper Control - Compatible with virtually all 24V powered and spring dampers

• Indicators - LED’s for all thermostats, equipmentand dampers, LCD display for configuration

• Configuration - Conventional and Heat Pump equipment Up to 4H / 2C

• Terminals - Panel Power: 24V, 24C

- Equipment: Rh, Rc, Y1, Y2, G, G2, W1/E/AX1, W2/AX2, O/B/W3, L, C

- Thermostats (4 each): R, Y1, Y2, W1/E/AX1, W2/AX2, O/B/W3, G, L, C

- Dampers (4 each): PO, C, PC Supply Air Inputs: SA1, SA2 Outdoor Air Inputs: ODT1, ODT2 Fire Alarm Inputs: FA1, FA2 Communication: (2 each) COM1, COM2, GND, COM3, COM4

Features:

• Controls up to 4 heating and 2 cooling stages

• Expandable up to 32 zones

• Compatible with electric, gas, oil and heat pump equipment–including dual fuel

• Can be used with virtually all low-voltage thermostats and dampers from other manufacturers

• Compatible with BlueLink Wireless Technology

• Large 5.5 sq. in. display shows system status

• Dual fuel operation with Braeburn outdoor sensor

• LED’s show all calls at a glance
