Replaces: Honeywell® TH4210, TH6210
Emerson® 1f82-0261, 1F83H-21PR, 1FB5U-22PR
Pro1® T605-2, T625-2, T715, T725
Thermostat Features
• Adjustable Temperature Differential
• Filter Check Monitor
• Optional Celsius Display
• Separate O and B Terminals
• Adaptive Recovery Mode (ARM )
• 7 Day, 5-2 Day or Non-Programmable
• Large 4.4 Sq. In. Display
• Bright Blue Backlight
• SmartLimit Temperature Limits
• SpeedSet Programming Mode
• Hardwire or Battery Powered
• Installer Lock Mode
• Heat Pump Check Terminal

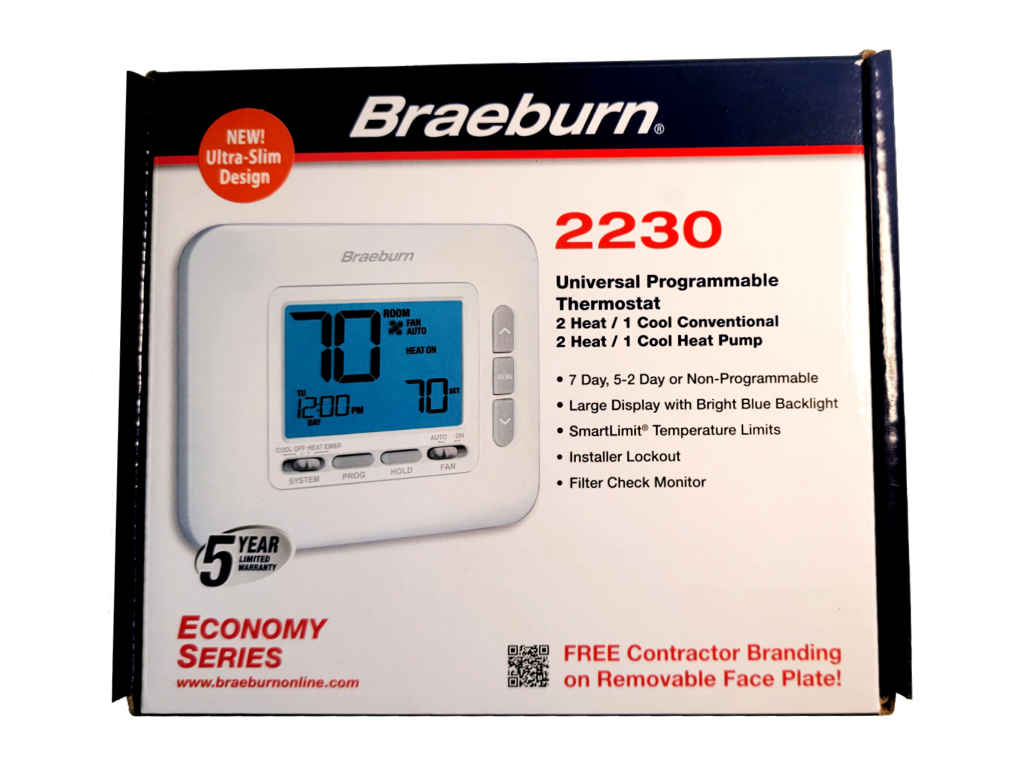

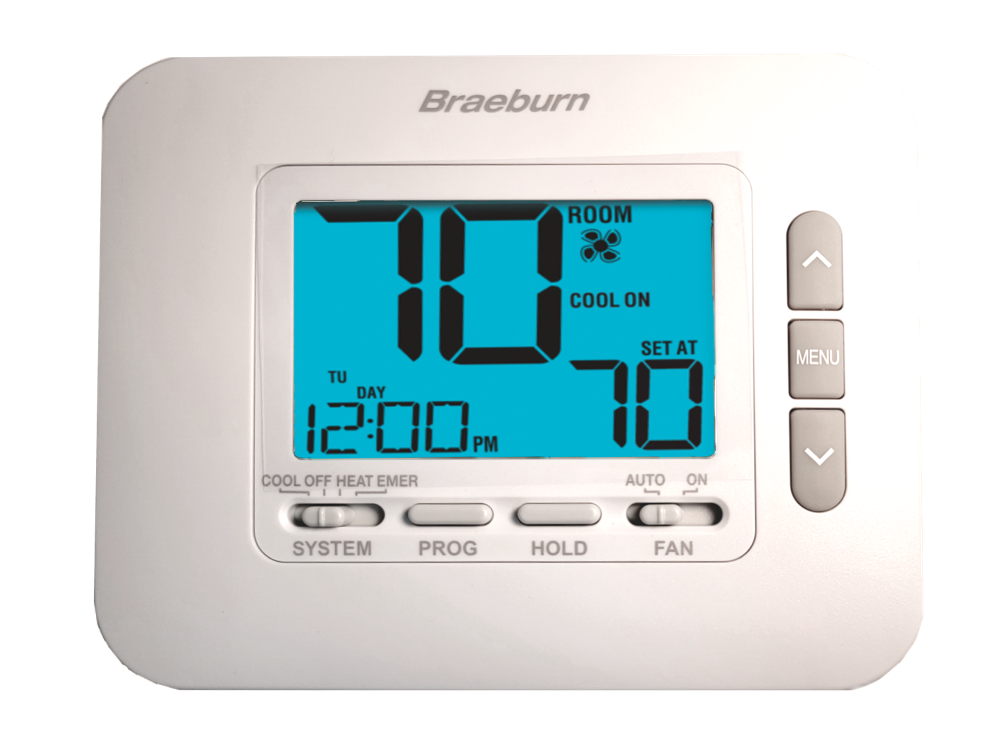

Braeburn 2230
Universal Programmable Thermostat
2 Heat / 1 Cool Conventional or Heat Pump
Product Specifications
Dimensions: 4.25” x 5.12” x 1”
Electric Rating: 24 Volt AC (18-30 Volt AC),1 amp maximum load per terminal, 4 amp total maximum load (all terminals)
AC Power: 18-30 Volt AC
DC Power: 3.0 Volts DC
(2 “AA” Alkaline batteries included)
Compatibility: Single stage gas, oil, electric or hydronic systems
Single stage heat pumps with or without auxiliary heat. 250mv – 750mv millivolt heating systems
Control Range: 45° to 90° F (7° to 32° C)
Display Range: 35° to 99° F (1.5° to 37° C)
Accuracy: +/- 1° F (+/- .5° C)
Temperature Differential: 0 .5°, 1°, or 2° F (0.2°, 0.5°, or 1° C)
Storage Temperature: 14° to 140° F (-10° to 60° C)
Operating Humidity: 5% to 95%
Relative Humidity Terminations: Rc, Rh, O, B, Y1, W1/E, W2, G, C, L
