RZ3-2M-120

replacement damper motor for 120 volt 2-wire spring motors

  (Free Shipping in Continental the US)

Click on pictures in gallery to view entire images.

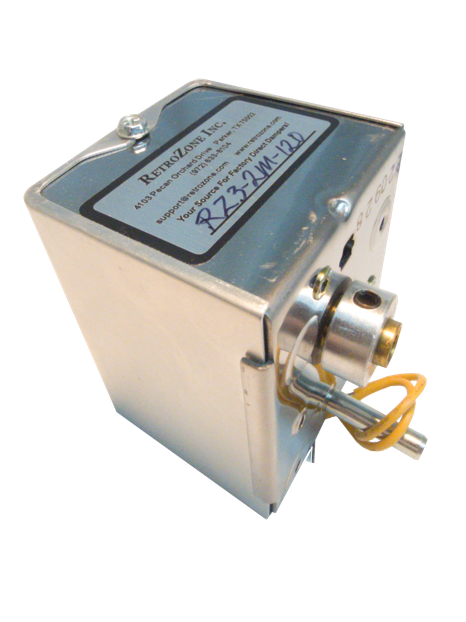

Picture 1&2: heavy duty replacement motor.

Picture 3&4: Detail images with the housing removed

Picture 5&6: heavy duty metal gear train to end gear failure.

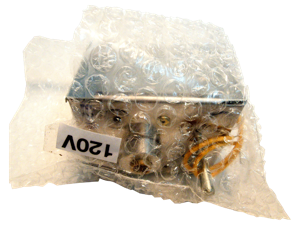

Picture 7: RZ3-2M-120 in packaging

RZ3-2M-120

Replaces many 120 volt two wire Spring return motors with a "common footprint" design as shown in the pictures, with 1.33 or 1 and 5/16 inch center shaft to shaft spacing.

This ad is for one Non-OEM brand replacement motor that is designed as a direct replacement normally open damper motor.

Check our METAL GEARS in picture 2 and 3 above! Our all metal gears and precision engineering get rid of the of the failure prone, plastic OEM gears.

These motors offer:
Less Cost
Better Quality

Full 1 Year Warranty

Features and Benefits

*Torque is consistently delivered throughout the full 90 degree rotational operating range to open and close the damper, and irrespective of whether the actuator is operating in Power Advance Mode (energized) or Spring Return Mode (de-energized).
*The energized actuator may be stalled at any angular position and remain energized indefinitely.
*When de-energized, the actuator consistently returns the damper shaft to home position, whether or not the starting spring return position is a full 90 degrees or any intermediate position.
*Extremely reliable. Statistical life reliability exceeds 120,000 cycles at 90% reliability and 100% confidence with no decay in delivery torque over life of the actuator.
*Very quiet operation typically 40dB, or less at 3 feet.
